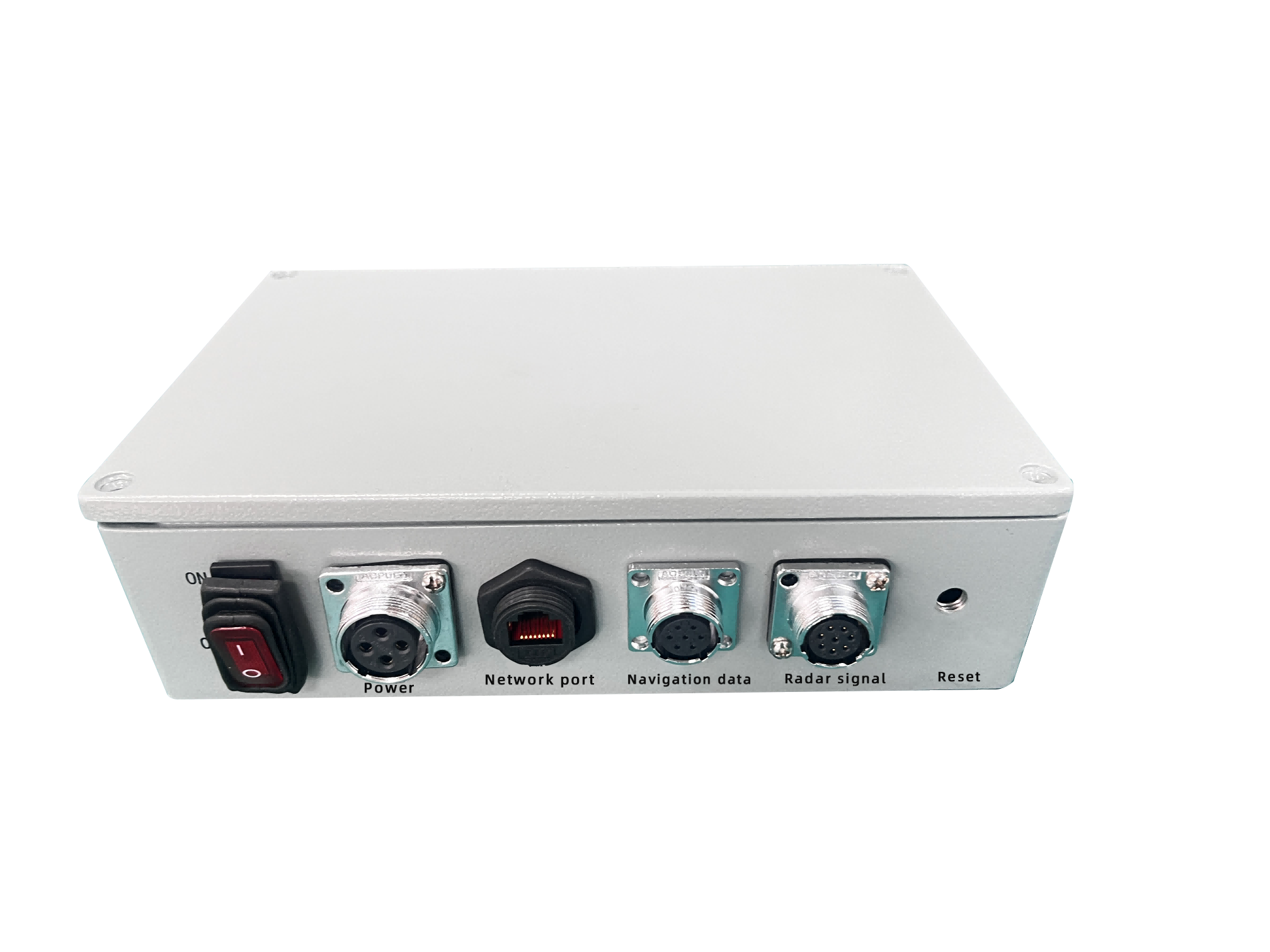

Product Introduction

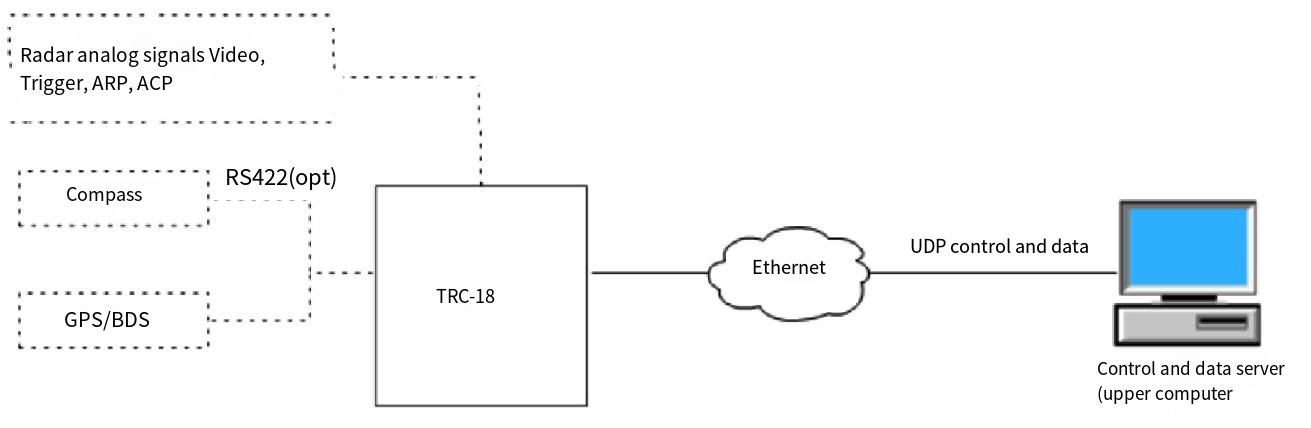

The TRC-18 Ethernet Navigation Radar Collector (Digital Radar Navigation Equipment) is capable of converting analog echo signals output by marine radars into digital signals compliant with the CAT-240 protocol (or custom private protocols). It can also collect onboard navigation data (optional functions, such as Compass and GPS) and distribute both types of data via Ethernet. The provided configuration routines allow data to be saved on a PC, enabling a "plug-and-play" experience.
Product Highlights
● 14-bit/8-bit high-precision AD sampling resolution, with a dynamic range suitable for small echo signals.
● Selectable sampling rates of 20.833 MHz/41.667 MHz/125 MHz to meet the requirements of different radar transmission pulse widths.
● Factory-customizable for raw radar data (RAW collection) or PPI display echo data (RNG collection).
● Provides an application installation package for data acquisition, storage, and navigation data (optional).
