FEATURES

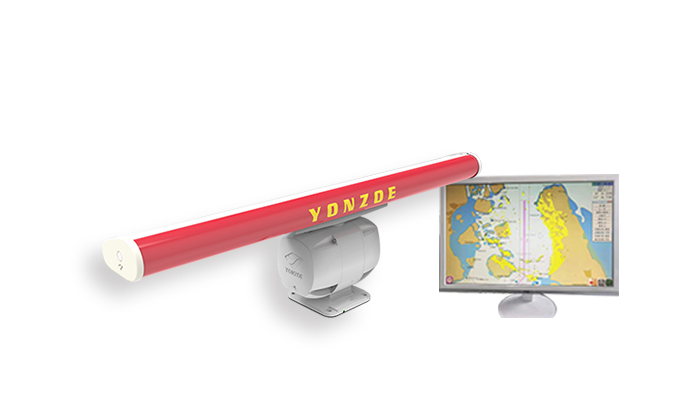

YAR28 (N) is a higher performance navigation and Marine Surveillance Network Radar developed on the basis of general navigation radar. It has better small target detection ability, more prominent sea clutter suppression performance, and better target tracking performance. The N-type network version, which can be used for remote control of radar or multi-radar networking, is more suitable for unattended, blind area surveillance and early warning occasions. Through an RJ45 ethernet, YAR28N can be controlled remotely by the control center and output navigation data such as radar echo, target track data, azimuth/position/AIS for the control center to use. It also provides a data interface to support radar operation and output.
YAR28 series of marine radar conforms to the latest international radar specifications such as IEC 60945, IEC 62388 (2013). It has passed the type certificate of China Classification Society (CCS), and has the certificate of approval issued by the State Radio Regulation Committee. In addition to collision avoidance, it is also suitable for new applications such as shore-based monitoring, network networking, photoelectric linkage, etc.
The YAR28 series radar has excellent small target detection performance. It has very good detection ability for targets with RCS as small as 0.1 m2. This radar uses unique sea clutter, rain clutter suppression algorithm, constant false alarm processing, incoherent accumulation, target enhancement, relative and true wake, ARPA collision avoidance, trial operation of ships, etc. It is especially suitable for ocean, commercial, marine police, maritime, maritime supervision, salvage and other occasions where radar has higher requirements.
FEATURES
●Unique noise reduction and wave and rain clutter suppression technology,strong ability to find small targets.
● Long range of action,0.125~128NM range.
●Up to 300 radar target tracking, outputting target number,position,speed and other track data.
●Support sector and polygon capture area setting.
●Up to 1500 AIS target displays and support for fusion display of radar targets and Als.
●Support relative and ground trailing functions andvector display for easy identification of moving vessels.
●Rich navigation aid markings, supportup to 200 waypoints and 30 route plans.
●Can support wind speed, bathymetry and rangefinder display.
●Support Chinese and English bilingual menu, optional Chinese keyboard.
●Optional built-in radar performance monitor.
●Rich self-test function, automatic fault alarm, modular architecture,easy maintenance and repair.
●N version network supports remote network control.
●N version network supports radar echo image,target track data,bearing/position/speed/AIS and other navigation data output.
●Optional support for radar target,AIS fusion and track output.
YAR28 (N) series small target navigation radar, with its outstanding performance and quality, and localized security factors, has been widely used on a number of marine police and Marine Supervision official vessels from south to the north. The following are some examples of installation and use of ships. The officers and men on board highly praised the round boat radar, which strengthened our determination and confidence in the localization of marine radar.
