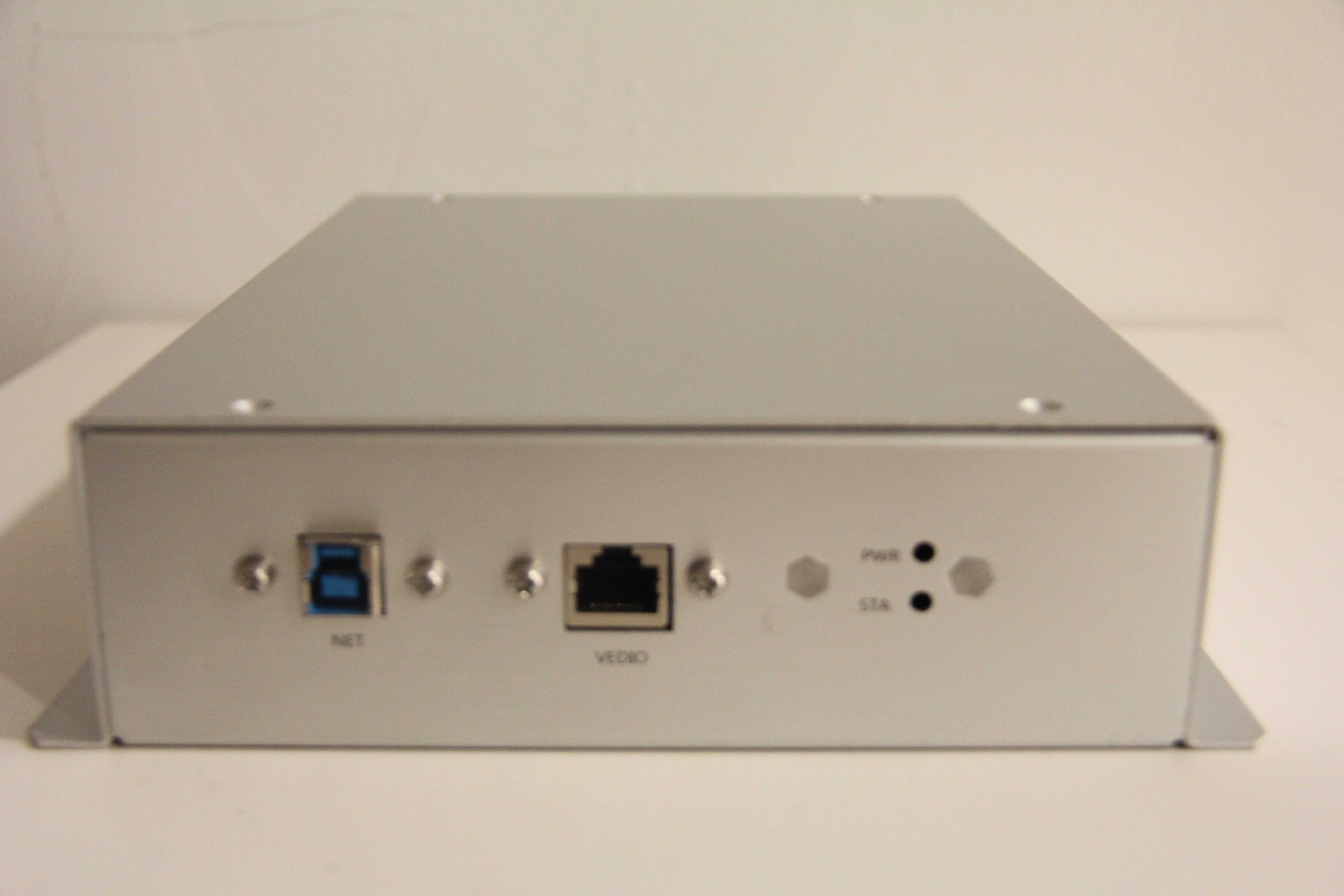

UARD_U3 USB Radar Signal Acquisition Card
Characteristic Parameter

ＩNTRODUCTION

By fifiltering, amplifying, analogue to digital conversion of the radar echo output signal on the radar main processor, before orientation adjustment, the radar acquisition device is sent to the computer fifile storage via the USB interface.
The acquisition card input requires the radar to provide Echo, Trigger, Bow Heading and Bearing signals.
The data storage format is raw data *.dat, image data *.bmp or *.jpg.


FEATURES

●USB2.0 or 3.0 interface is used for high speed and real-time acquisition and storage of images and data.

●Low-pass fifilter for analogue channels, bandwidth 10MHz/20MHz/40MHz selectable.

●Sampling rate 25MHz/50MHz/100MHz selectable.

●High precision AD, sampling bits 8bits/12bits/14bits selectable.

●Channel gain adjustment range -10 dB to +40 dB adjustable.

●Image storage supports jpg and bmp formats.

●Raw data acquisition support continuous or watchful storage function.

●DLL development library is provided to facilitate secondary development.


Data download

Name Type Date Size Download
UARD-U3 USB Radar Signal Acquisition Device Brochure 2024-04-02 Download
